Accurate, Repeatable Laser Cutting at Any Scale

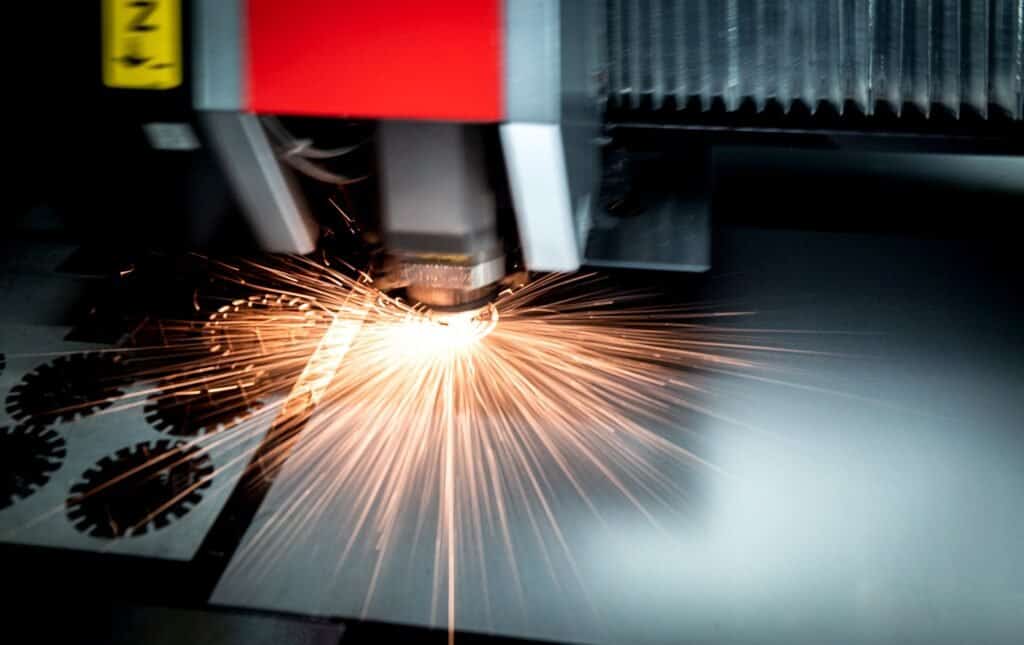

At LGM Engineering, our laser cutting capability is built around an Amada ENSIS fibre laser, supported by an AS-LUL automated loading and unloading tower, enabling fast, repeatable and highly accurate laser cutting across a wide range of materials and thicknesses.

The ENSIS platform uses variable beam control, automatically adjusting the laser beam profile to suit material type and thickness. This allows us to maintain clean edge quality and dimensional accuracy across thin sheet and thicker plate without constant manual intervention, improving consistency, throughput and overall cut quality.

At LGM Engineering, our laser cutting capability is built around an Amada ENSIS fibre laser, supported by an AS-LUL automated loading and unloading tower, enabling fast, repeatable and highly accurate laser cutting across a wide range of materials and thicknesses.

The ENSIS platform uses variable beam control, automatically adjusting the laser beam profile to suit material type and thickness. This allows us to maintain clean edge quality and dimensional accuracy across thin sheet and thicker plate without constant manual intervention, improving consistency, throughput and overall cut quality.

Our AS-LUL automation tower enables automated sheet handling and part unloading, allowing lights-out operation on suitable jobs. By reducing manual handling, we minimise human error and maintain stable production on longer runs and repeat work, delivering shorter lead times and reliable repeatability for both one-off prototypes and production batches.

We provide precision CNC laser cutting services that support customers from initial concept through to finished components. CAD-driven programming ensures parts are cut exactly as specified, while efficient nesting and automated workflows keep lead times short and costs competitive across one-off, short-run and medium-volume production.

Where required, we work closely with customers to support downstream processes such as folding, welding, finishing and assembly. This integrated approach reduces handling, improves batch-to-batch consistency, and ensures components arrive ready for the next stage of manufacture or installation.

See our Laser Technology

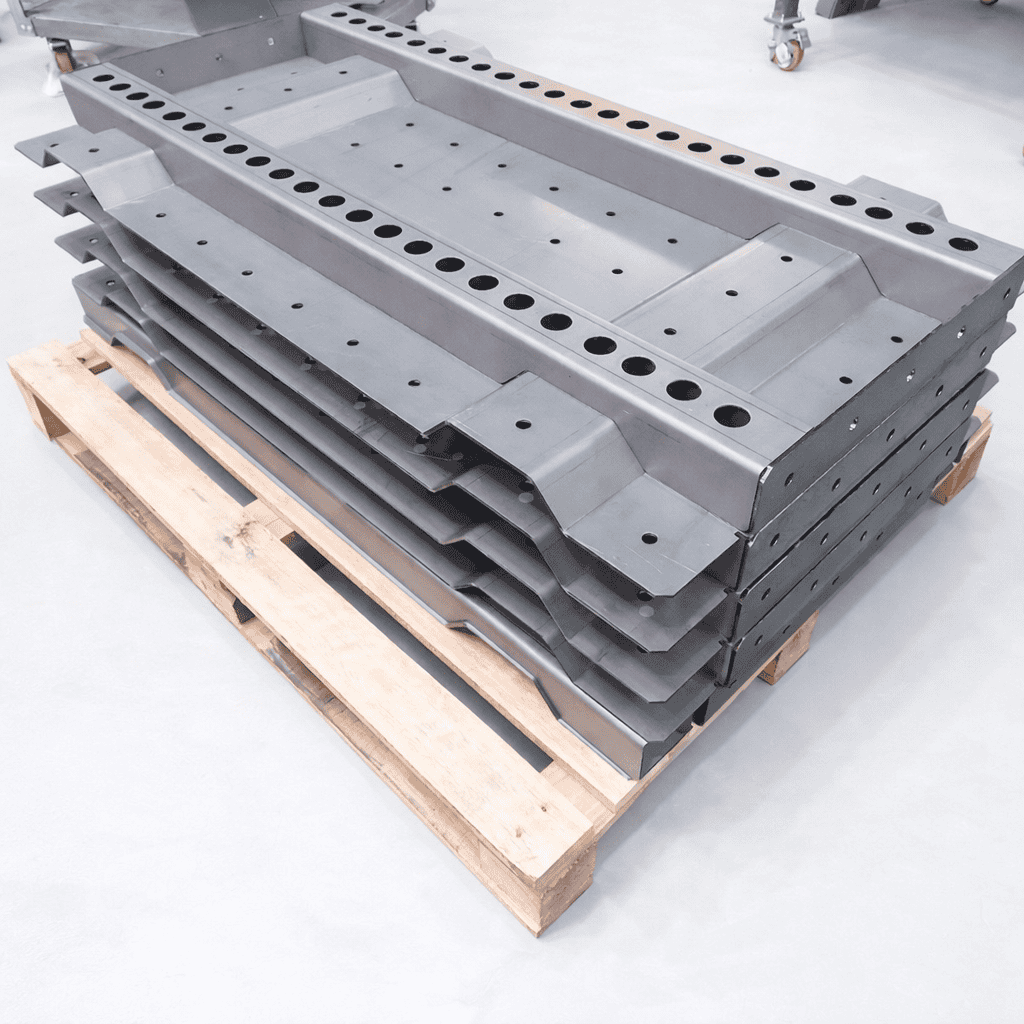

Laser cut and folded sheet metal components manufactured by LGM Engineering

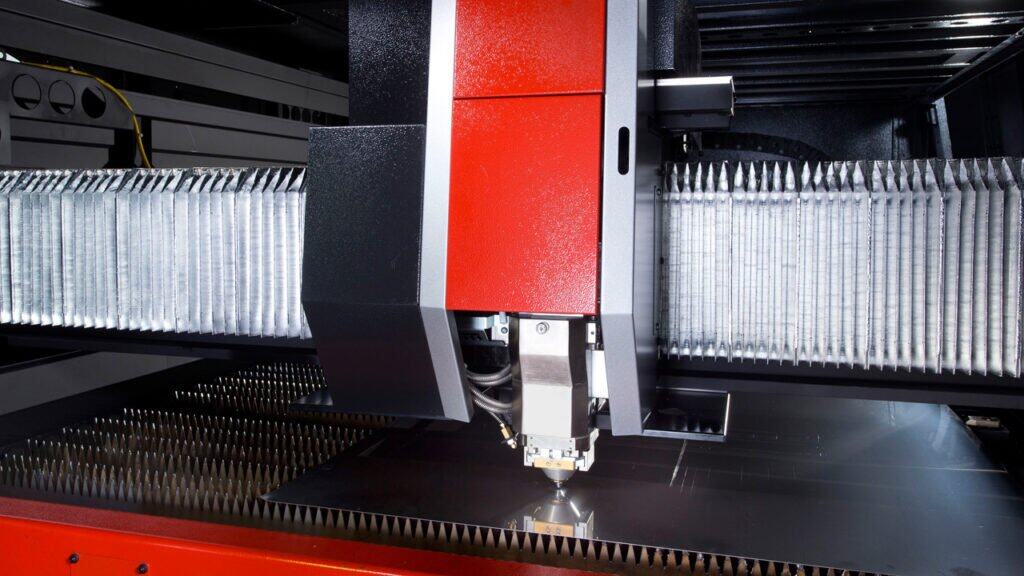

CNC fibre laser cutting sheet metal in production

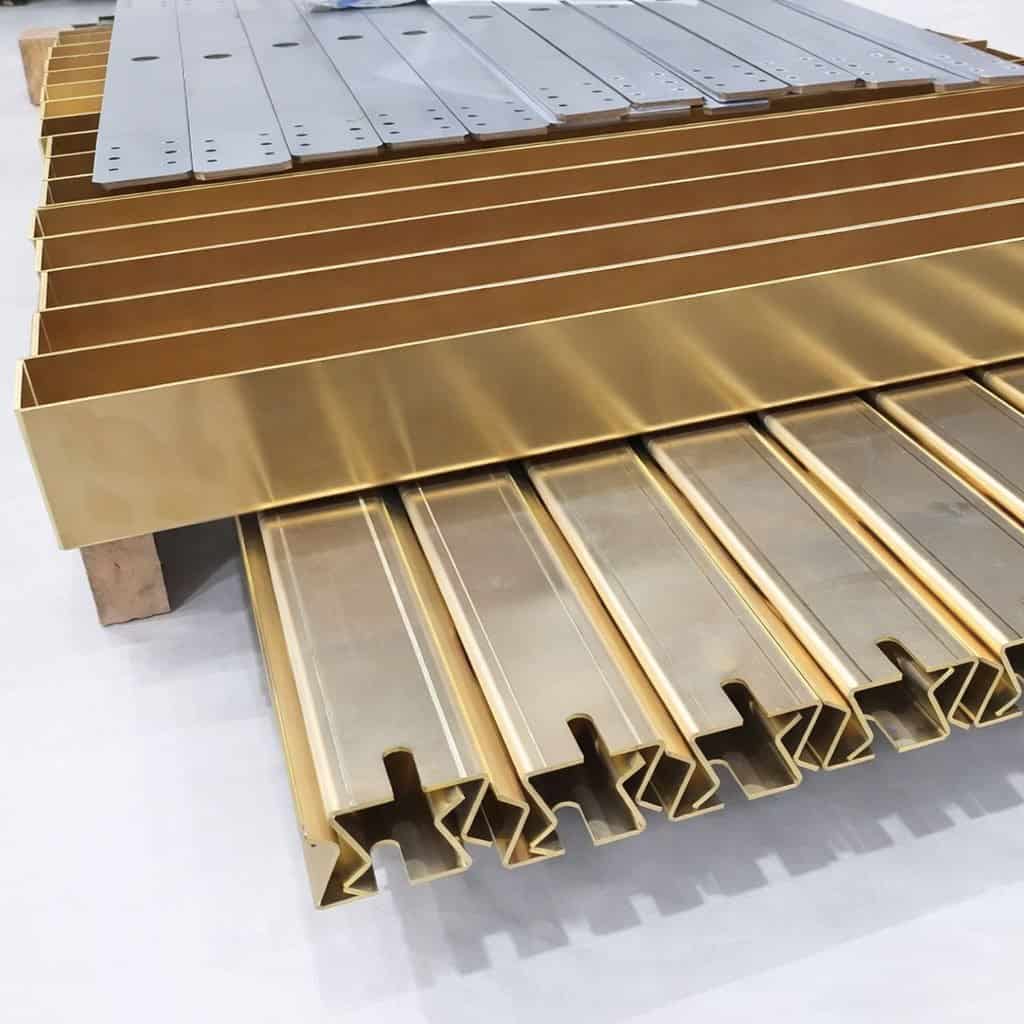

Laser cut and folded brass components manufactured by LGM Engineering

Laser Cutting Capabilities

Bed Size

Our laser cutting systems handle sheet sizes up to 3 m × 1.5 m, allowing efficient processing of both small components and large-format parts

Laser power

Our fibre laser operates with up to 6 kW of cutting power, enabling fast, precise cutting across a wide range of materials and thicknesses.

Automation

Our lights-out automation enables unattended operation, increasing throughput and consistency while reducing lead times for repeat production.

Mild Steel

We routinely laser cut a wide range of mild steels including CR4, DD11, S275 and S355, delivering consistent accuracy and clean edges across both prototype and production work.

Stainless Steel

We laser cut stainless steels including 304, 316, 420 and Duplex grades, with components supplied in a range of polished and brushed finishes to suit functional and aesthetic requirements.

Aluminium

We laser cut aluminium grades including 1050, 5251, 5083 and 6082, producing accurate, distortion-free parts suitable for structural, marine and general engineering applications.

Brass

We laser cut brass sheet in a range of common grades, producing clean, burr-free components with high-quality edge finish for decorative, electrical and architectural applications.

Copper

We laser cut copper sheet for precision components, achieving clean profiles and consistent edge quality for electrical, thermal and decorative applications.

Titanium

We laser cut titanium grades for precision components, maintaining tight tolerances and edge quality for demanding aerospace, medical and high-performance engineering applications.

See Our Laser Cutting Material List
Integrated Laser Cutting and Press Brake Folding

Maximise efficiency by combining laser cutting and press brake folding within a single, controlled workflow. We take your designs from flat sheet through to accurately formed components, maintaining precision and consistency at every stage.

  • Precision cutting preparation – CNC laser cutting of mild steel, stainless steel, and aluminium, accurately cut to size for forming

  • Custom cut components – Laser cut blanks produced to suit specific bend allowances and fold sequences

  • Accurate press brake folding – Multiple controlled bends and folds carried out on laser-cut parts using modern press brake equipment

  • Optimised blanks – Laser cut components sized and prepared to ensure efficient, repeatable press brake operations

By carrying out laser cutting and press brake bending under one roof, we reduce handling, shorten lead times, and maintain tighter quality control, resulting in reliable, cost-effective folded components.

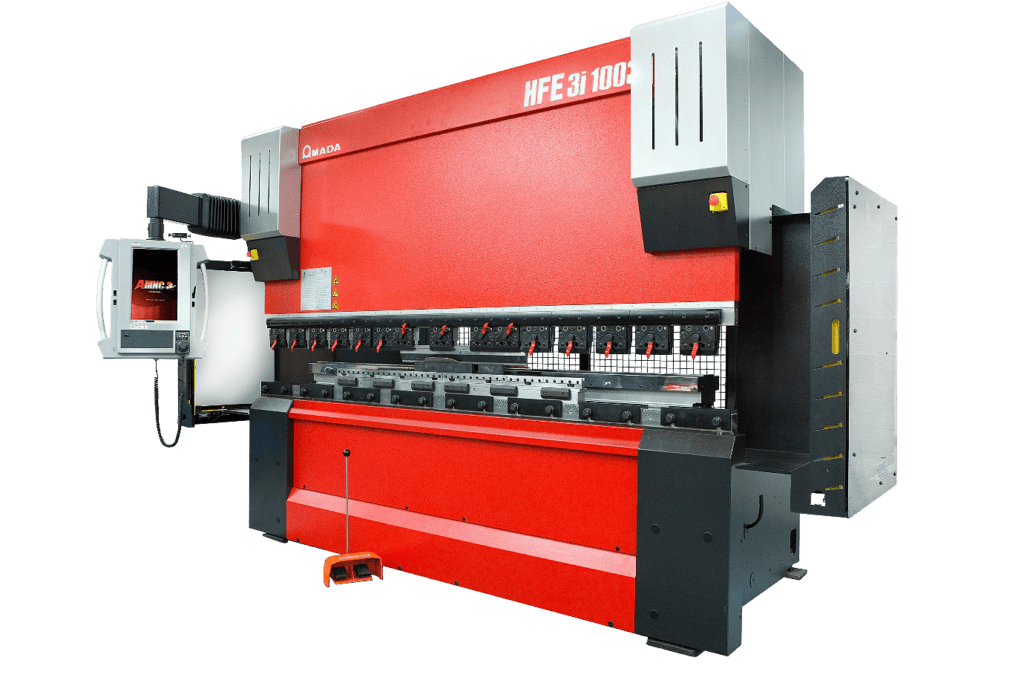

100-tonne 3-metre CNC press brake at LGM Engineering in Surrey
See Our Folding Capacity

Other Services

See All Our Services

Laser Cutting FAQ’s

The maximum single part size we can laser cut is 2990 × 1490 mm, based on standard sheet dimensions.
If your part is close to this size or requires multiple sections, we can advise on the best approach.

We can laser cut a wide range of materials and thicknesses, depending on grade and finish.

  • Mild steel: 0.6 – 25 mm

  • Stainless steel: 0.6 – 25 mm

  • Aluminium: 1 – 25 mm

  • Brass: 0.55 – 15 mm

  • Copper: 0.6 to 3 mm

  • Titanium: 0.6 to 10 mm

Maximum thickness depends on material grade, surface condition and part geometry. If your job is close to these limits, we’ll confirm suitability before cutting.

As a general rule, the minimum hole diameter we recommend is around 60% of the material thickness.
Holes smaller than this may be possible, but edge quality and consistency can be affected.

Example:

  • 10 mm thick steel → minimum recommended hole ≈ 6 mm

  • 5 mm thick stainless steel → minimum recommended hole ≈ 3 mm

If your design includes smaller holes, we’ll advise whether laser cutting is suitable or if a secondary drilling process would be better.

Yes, but only by agreement. Free-issue material must be suitable for laser cutting and supplied flat, clean and clearly identified.

Typical tolerances are ±0.25mm, depending on material, thickness and geometry. If your job is tolerance-critical, tell us upfront.

You should expect:

  • Accurate profiles

  • Clean laser edges

  • Light surface marks from handling or sheet movement
    If a cosmetic finish is critical, let us know before production.

Warping or bowing is slight movement in thin material caused by heat input and residual stress. It is normal in laser cutting and can vary depending on material type, thickness and part geometry. Hot rolled material can also exhibit warping due to residual tension introduced during coil processing and de-coiling, which may become apparent once parts are cut free.

Fine detail is possible, but decorative parts may show witness marks or micro-tabs depending on size and material. We’ll advise if a design pushes limits.

Light scratches are normal handling marks. Deep gouges are not acceptable and should be reported immediately.

  • Etching: shallow surface marking

  • Engraving: deeper, more permanent marking

Our laser can only Etch the surface
